OZ1RDP - activity 2012
Friday, may 25th - Tuesday, may 29th 2012

  Participants (from left to right):
Lotti (DH1LM), Matze (DL9BQ), Holgi (DM6HB), Gaby (DM1CG), Günni (DL9BCP), Dirk (DM1DZ),Tobi (DL4KBS), Tobi (DL4KBS), Klaus (DC4NA)

1. Equipment

Stations                Band                         Mode                                  Antenna (*=homemade)
Tent 1                   40m                         SSB                                        4-Square-Array (*)

Tent 2            10m/15m/20m                  SSB                             2-ele-3-Band Moxon-Beam (*)
                             20m                                                                       4-Square-Array (*)

Tent 3                   15m                         SSB                                   2-ele-Moxon-Beam (*)
                             15m                         SSB                                         4-Square-Array (*)
                               6m                         SSB                                              Dipol (*)
                              30m                       BPSK31                                   4-Square-Array (*)

Tent 4                   80m                         SSB                                   TX: Vertical (*)
                                                                                                      RX: K9AY-Loop-Array

Tent 5                     17m                       SSB                                   10-40m Multiband Vertical
                      17m/30m/40m                 CW

2. New DXCC
    - 4L                Georgia
    - 4U                ITU Geneva
    - EY               Tajikistan
    - FJ                 Saint Martin
    - FO                French Polynesien
    - HC               Ecuador
    - HL               South Korea
    - HS               Thailand
    - TA1             Turkey (Europe)
    - V3                Belize
    - VP9              Bermuda
3. peculiaritiy

- We used four homemade 4-Square-Arrays (15m, 20m, 30m, 40m) in time.
- The stations in the tents used UCX-Log and were connected to each other via WLAN.
- For the 80m-band-vertical a 18m long glassfiber-pole was mounted and the antenna matched by
  a miniVNA-analyzer. A
K9AY-Loop-Array was used for RX-antenna.
- On 15m within less than 2 hours we reached
among others 64 contacts to Japan (JA) and 4 contacts to South Korea (HL).
- We made practise for the first time in digital mode DOMINO.

OZ1RDP_2012_Geländeübersicht  OZ1RDP_2011_2m

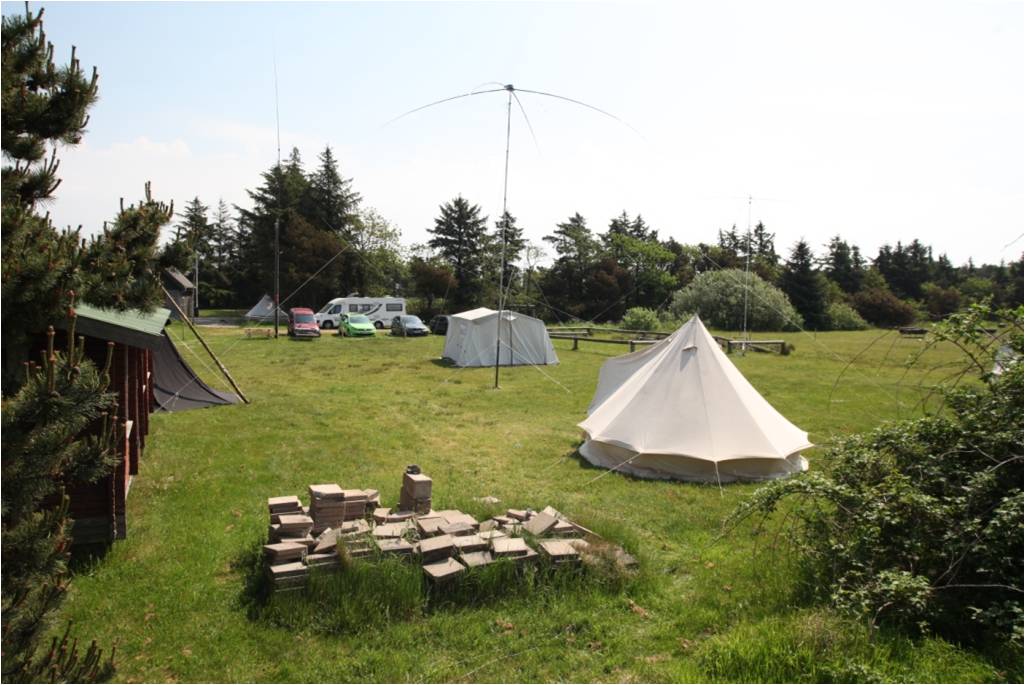

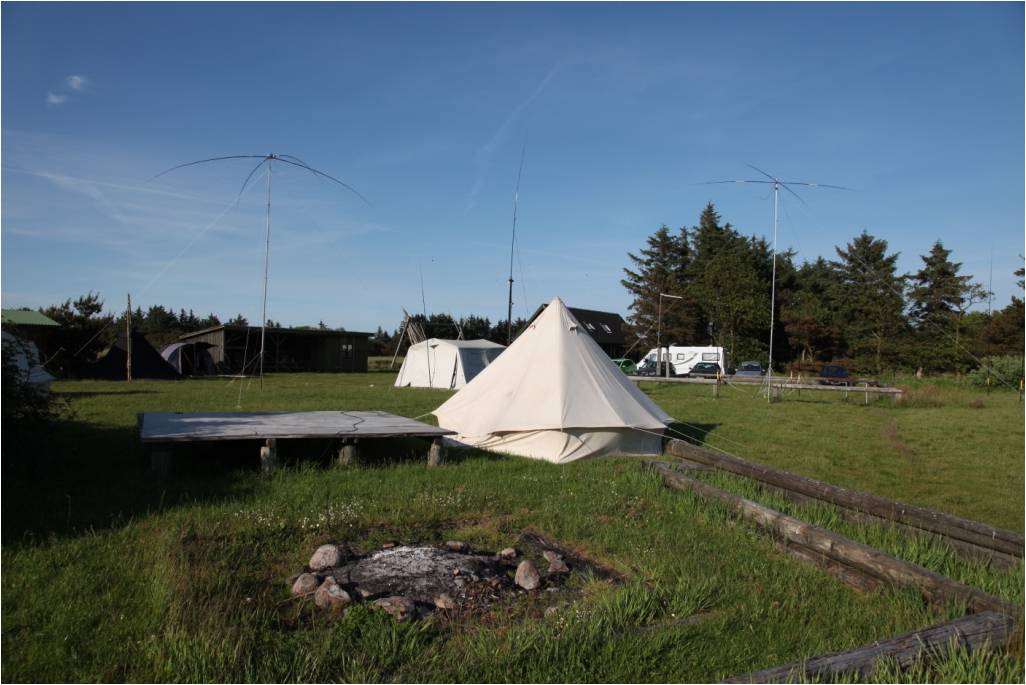

The radio stations were placed in tents, spread over the whole area

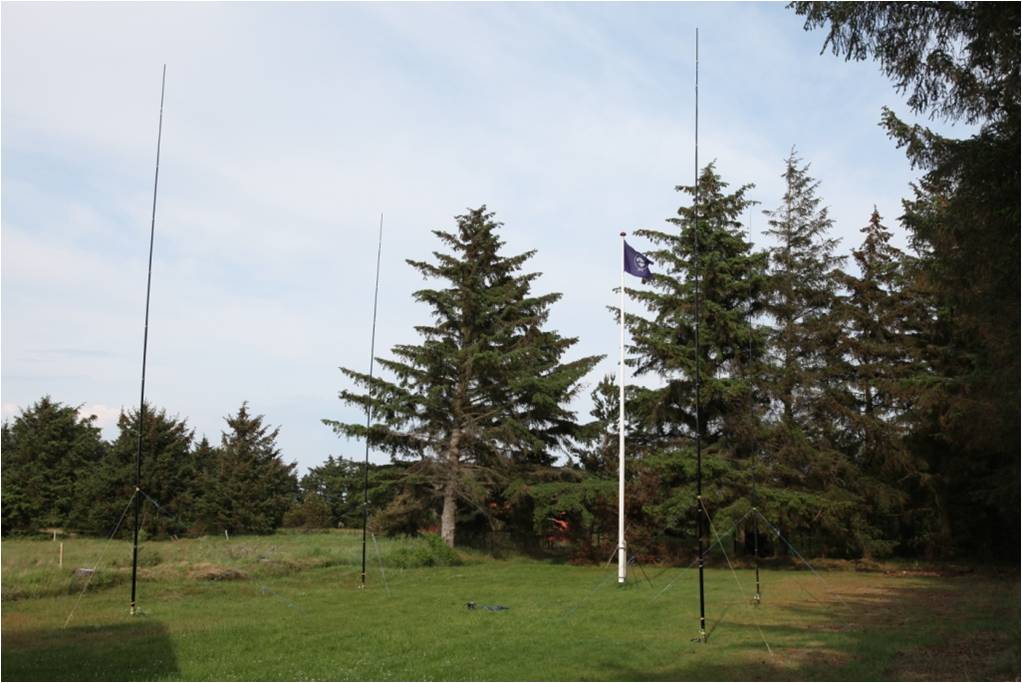

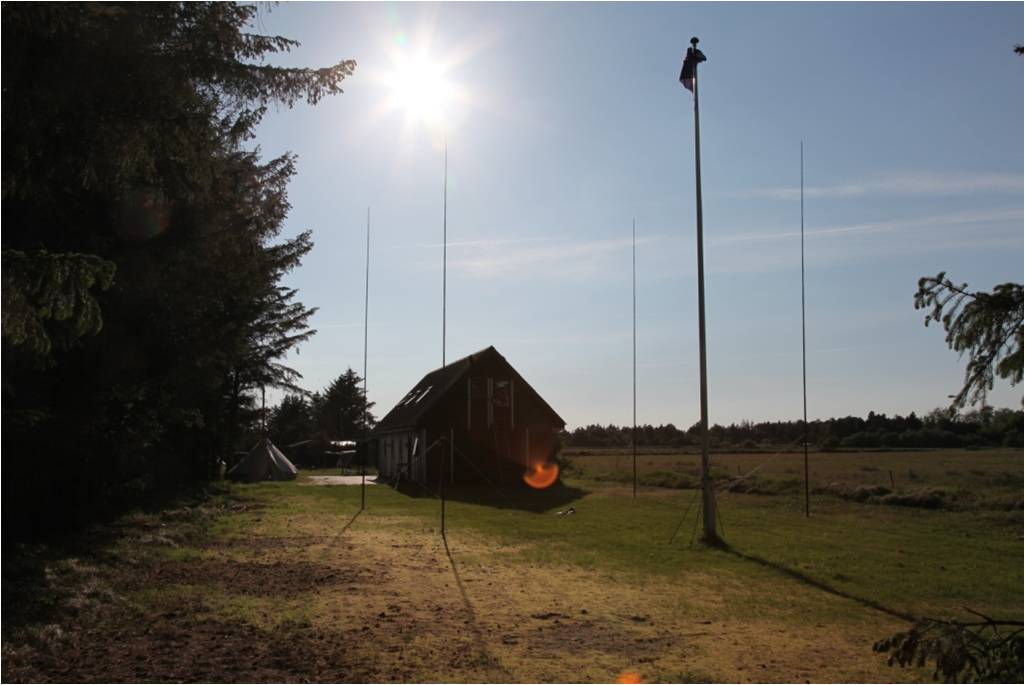

In the east corner of the area, after the service house, the 4-Square-Array for 40m was put.
The radio-station was in the tent on the left side

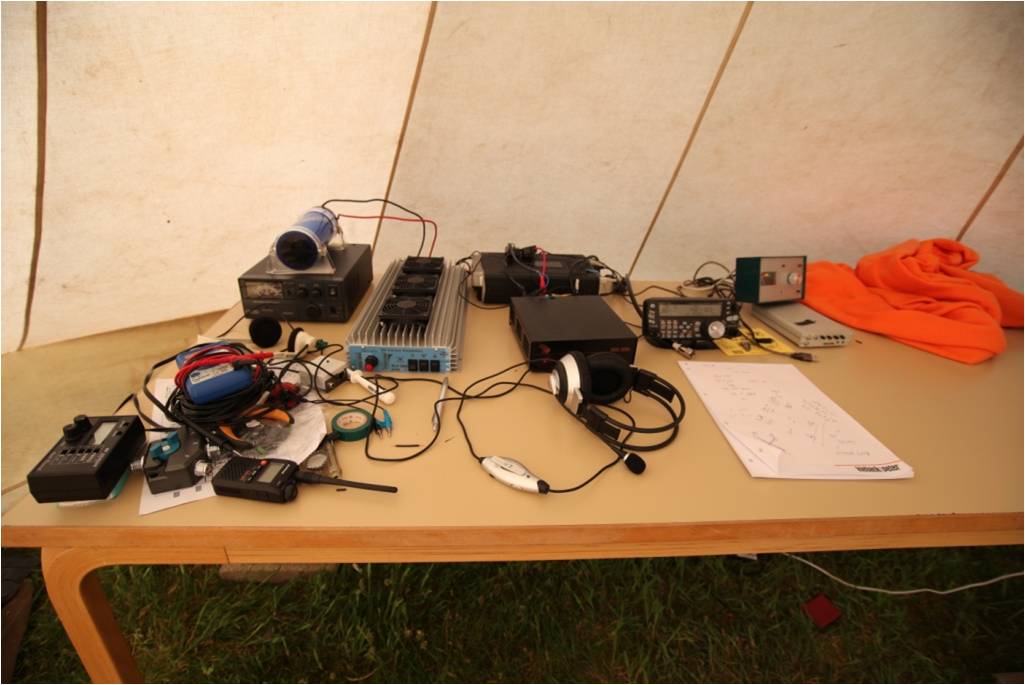

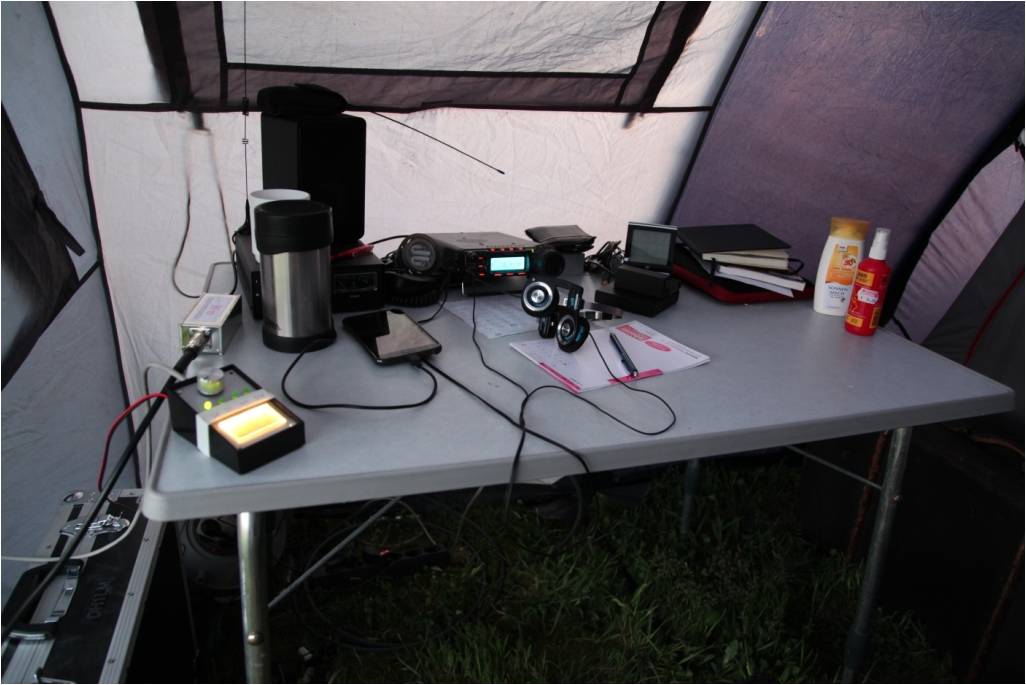

Radio-stations for 20m (left) and CW (right)

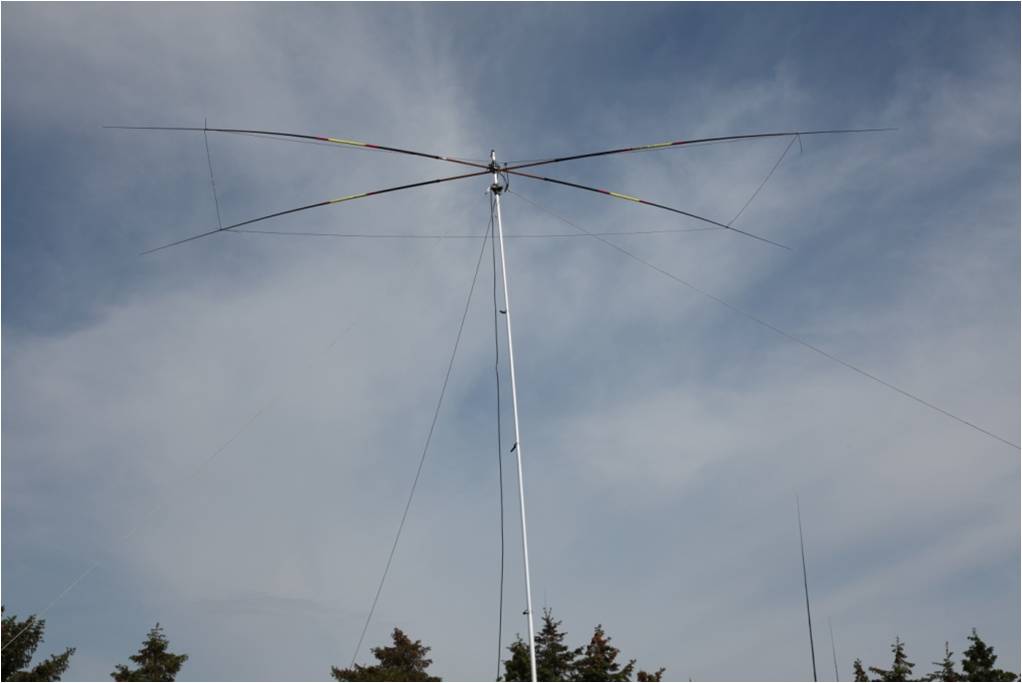

Antennas Typ "Moxon-style"

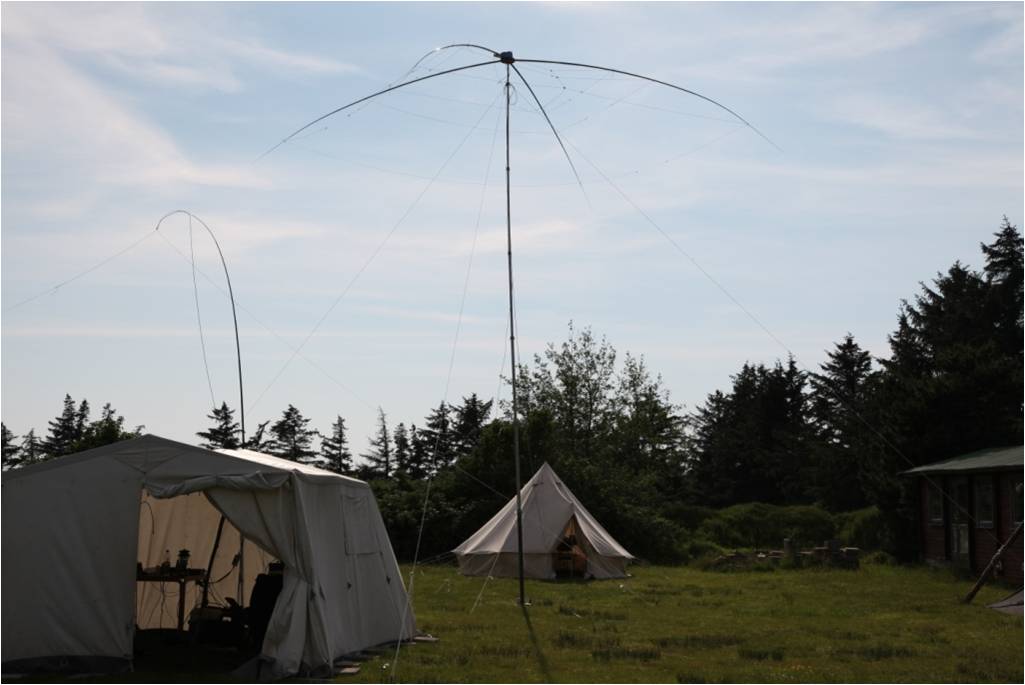

OZ1RDP_2012_10_15_20_Moxon  OZ1RDP_2012_15m_Moxon
10/15/20m                                                                                                                    15m

Antennas Typ "Vertical"

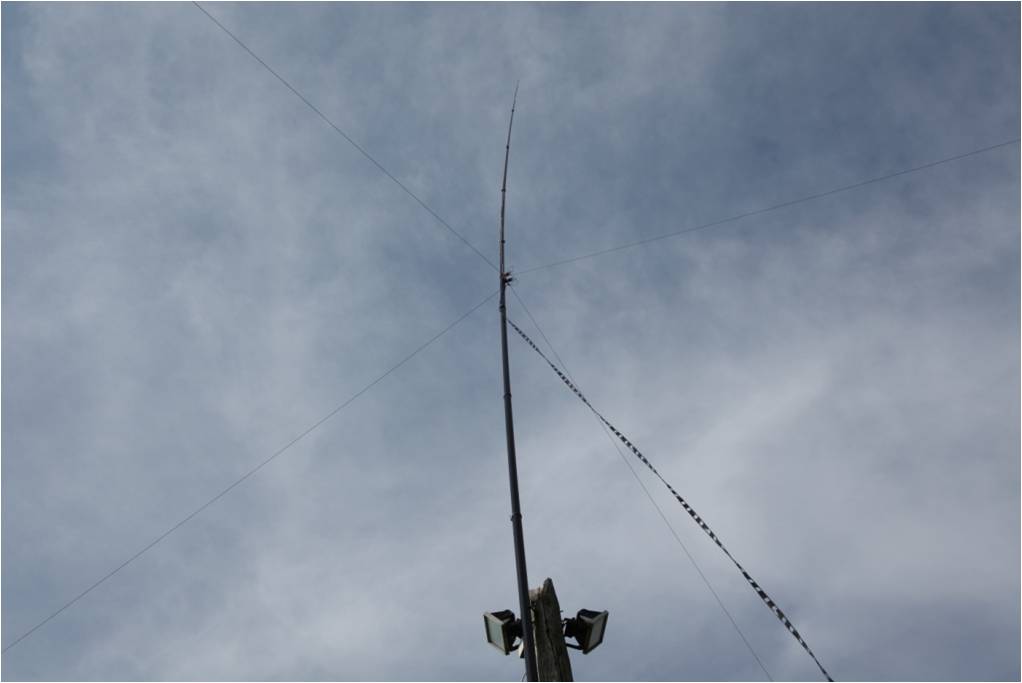

10-40m Multiband-Vertical (Pole: 18m Spiderbeam)

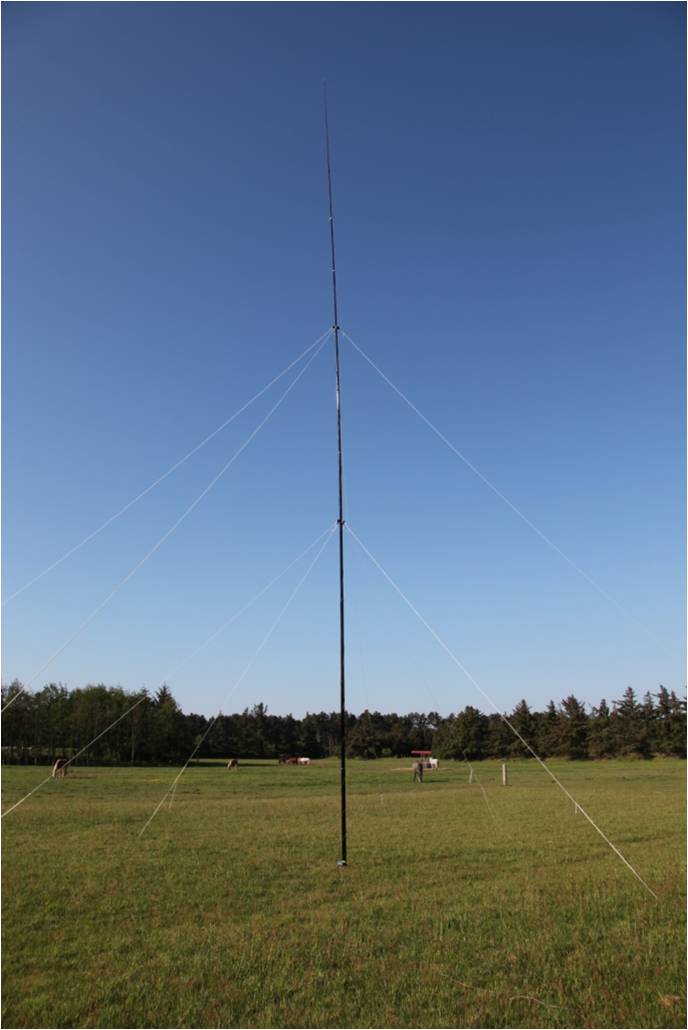

80m Vertical (Pole: 18m Spiderbeam)

Antennas Typ "Four-Square-Array"

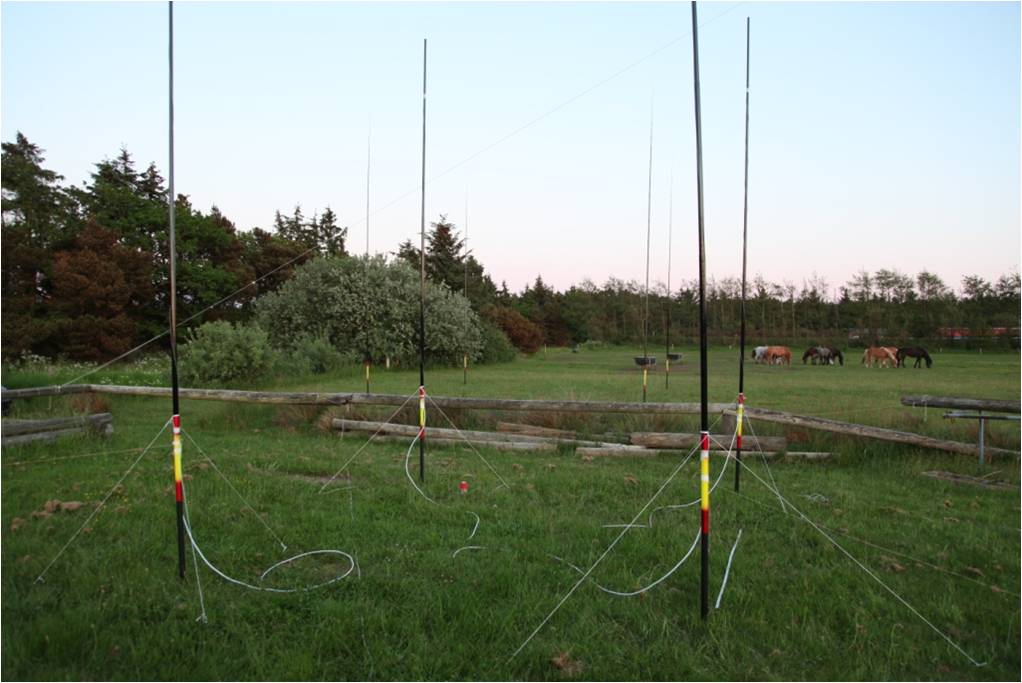

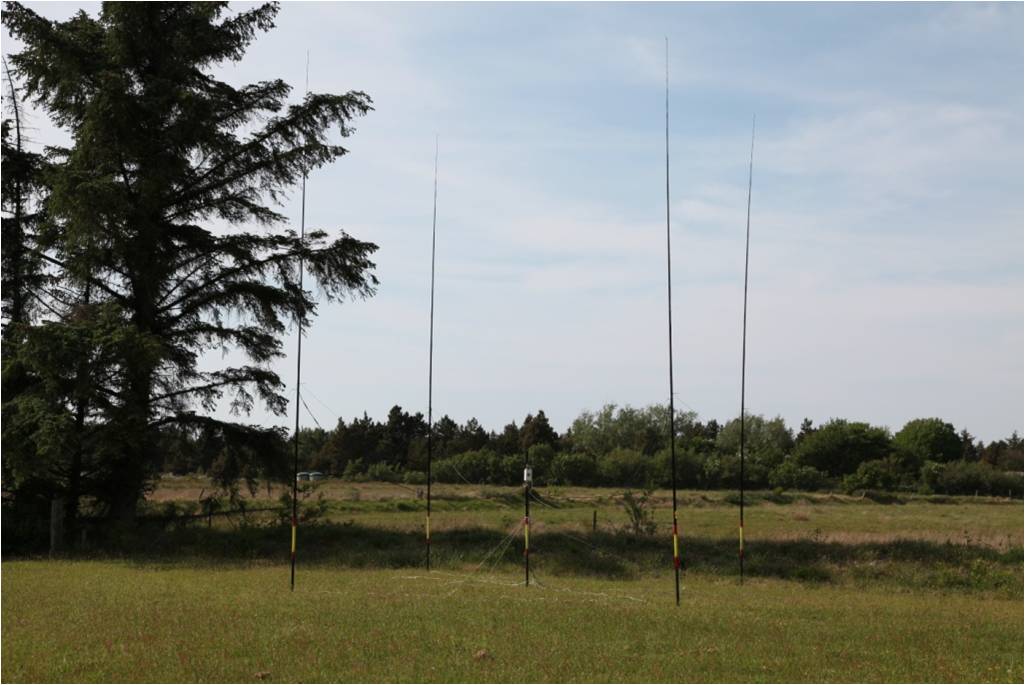

15m                                                                                                                                            20m

OZ1RDP_2012_30m_4SQ  OZ1RDP_2012_40m_4SQ

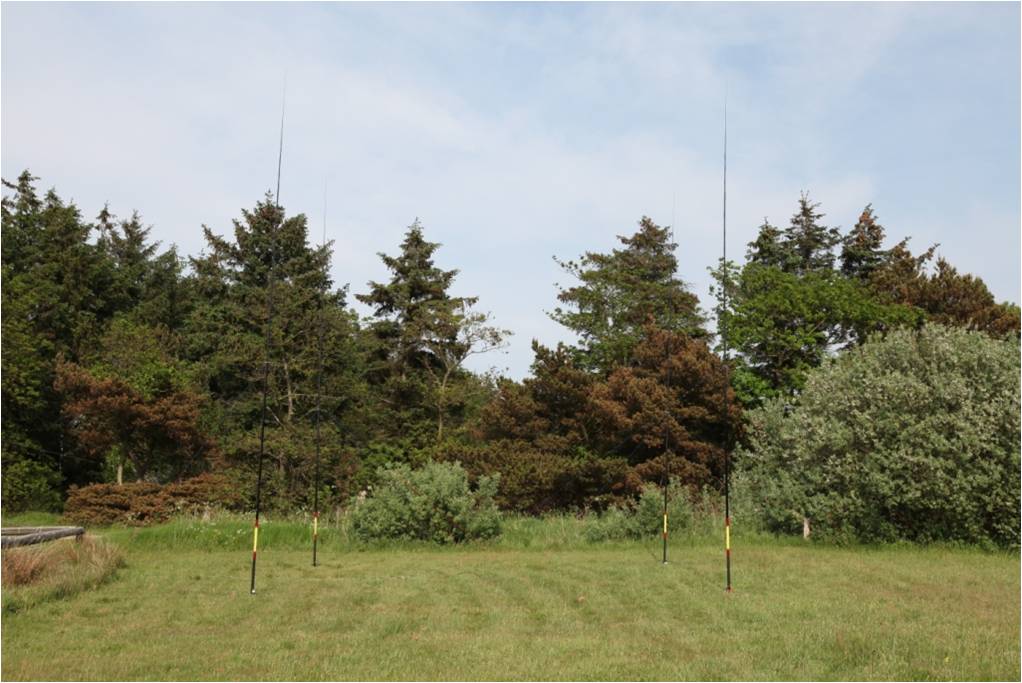

30m                                                                                                                                            40m

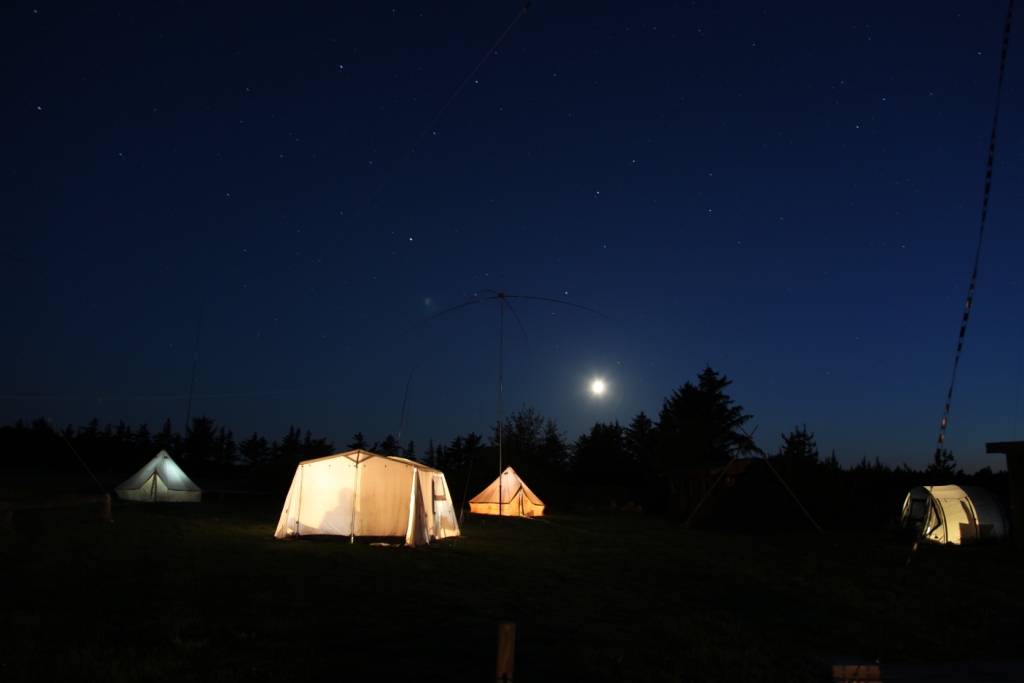

Radio contacts in the night
